Installing
Risers 102
Materials Needed: (Purchased
all items at Ace Hardware)
(2) ½-13 x 3” Hardened Hex-Head
Bolts $ .90 each
(2) ½” Flat Washers $ .16
each
(2) ½” Lock Washers $ .13 each
(2) M24 Hardened Washers $ 1.70 each
Super Glue
Liquid Dish Soap
1 Foot section of Clear Vinyl Tubing (5/8” OD x
½” ID) $ 1.00
1 Foot of ½” white PVC Pipe (actual size
is 7/8” OD x 9/16” ID)
Sched 40 $ 1.00
“Blue” Locktite
The one thing I want you to notice is how inexpensive these items were. I didn’t price out the Dish Soap, Locktite, or the Super Glue. I already had them. I paid $ 55.00 delivered for the risers on EBAY.
 |
||

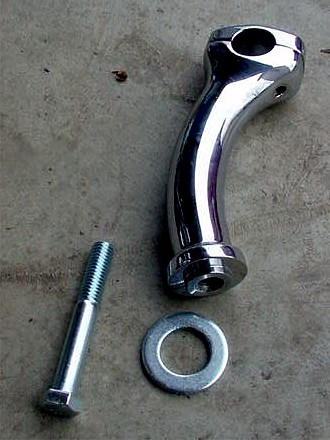

| Riser/Washer/Bolt
|
||
 |
||

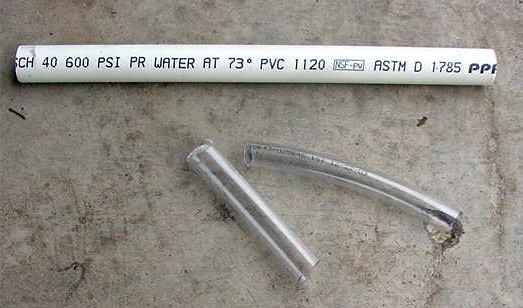

PVC
& Clear Tubing
|
||
The
first thing you want to do is remove the headlight lens assembly. Then unplug
(disconnect) and of the internal wires inside the headlight assembly. Next remove
the headlight housing from the fork. Next remove the backplate from the headlight
housing and feed all wiring out the rear of the housing.
Remove all controls from the handlebars. Since you have internal wiring, most
of these items will hang from the bars. You’ll need to reroute your throttle
cable outside the fork tubes.
Next you remove the riser caps and gently pull up on the handlebars while straightening
the wiring as it travels through the bottom side of the risers. Once you have
the bars removed it’s time to work the wiring out of the bars. Do this
slowly, pushing on one end of the cables while pulling on the other.
Once this is done and all wiring is removed from the bars, reinstall the bars
on the risers. I have no idea what size metric socket it takes to remove the
risers, but a 1-1/4” socket works just fine. Remove the risers.
When you have the risers removed, save two of the large flat washers and all
of the rubber washers. You’ll need these when mounting the Harley Deuce
Risers.
You’ll notice that the upper triple tree has bushings pressed into it.
These are steel sleeves surrounded by rubber. DO NOT ATTEMPT
TO REMOVE THESE!
First measure the length of the
triple tree bushings. Mine were about 1-3/8” long. I cut two pieces of
PVC Pipe 1-5/16” long.
(Note: These pieces need to be slightly shorter than the triple tree bushings.)
Next insert the Clear Vinyl Tubing through one piece of the PVC so that about
½” of Clear tubing comes out the other side. Next with a sharp
blade trim the Clear Tubing even with both ends of the PVC Pipe. Do this on
both pieces of PVC.
|

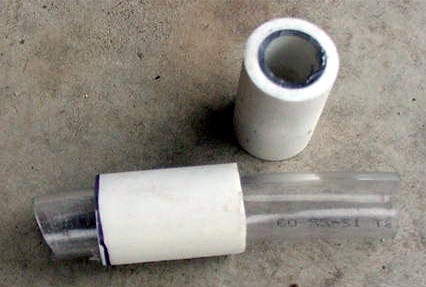

PVC/Clear
Assembly |
Next work a small screwdriver between
the PVC and the Clear Tubing and put a drop of Super Glue in there. Then pry
the Clear Tubing back against the side of the PVC. Do this in one spot on both
ends of the PVC.
Now take the ½-13 x 3” bolt and install the lock washer and then
the ½” flat washer. Next squirt some Liquid Dish Soap on the bolt
covering the threads. Now start screwing the PVC assembly on the bolt by hand.
When it starts getting difficult to turn use a socket and ratchet on one end
and a pair of channel locks to hold the PVC.
Once you’ve determined that the PVC has completely cleared the threads,
sit the bolt on it’s head, take the extra piece of PVC, slide it over
the bolt, and drive the PVC assembly down on the bolt until it makes contact
with the flat washer. Repeat this with the other bolt.
 |

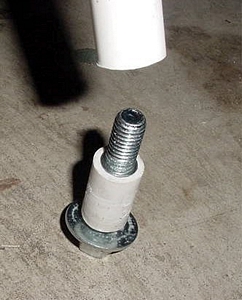

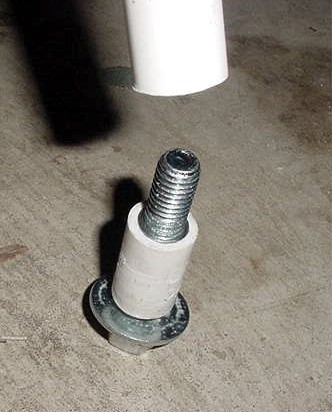

Bolt Assembly |
Now we are ready to start mounting
the risers. First install one of the large flat washers from the original risers
and then a rubber washer on the bolt assembly.
This assembly should now be as follows on the bolt:
Bolt Head, lock washer, ½” flat washer, large flat washer, and
rubber washer. Of course the PVC assembly is on it also. (NOTE: Clean all of
the soap off the threads)
Put some “blue” Locktite on the threads and insert the bolt assembly
through the triple tree from the bottom. Holding it in place, put one rubber
washer on the top of the triple tree bushing, and then place the M24 Washer
on top of it.
(You’ll notice that the M24 washer has the perfect ID for the bottom of
the Deuce Riser.)
Next thread the riser onto the bolt assembly. Make sure that the bottom and
top rubber washers are on the triple tree bushing and that the M24 washer is
centered on the riser. Do not tighten completely. Just snug them enough to hold
the risers in place.
Next mount the handlebars on the risers. Now you are ready to finish tightening
the riser mounting bolts.
 |
 |
|

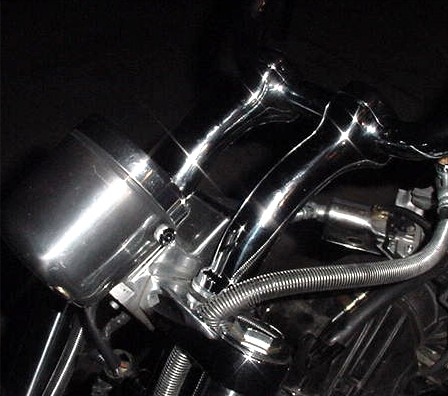

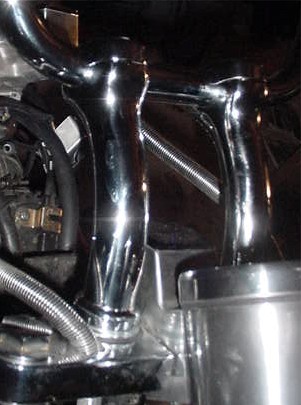

Risers
Mounted |
||
Simply reroute all wiring externally, and reassembly everything reverse order of removal.
These Instructions Courtesy Of Pepto @ The Cafe
